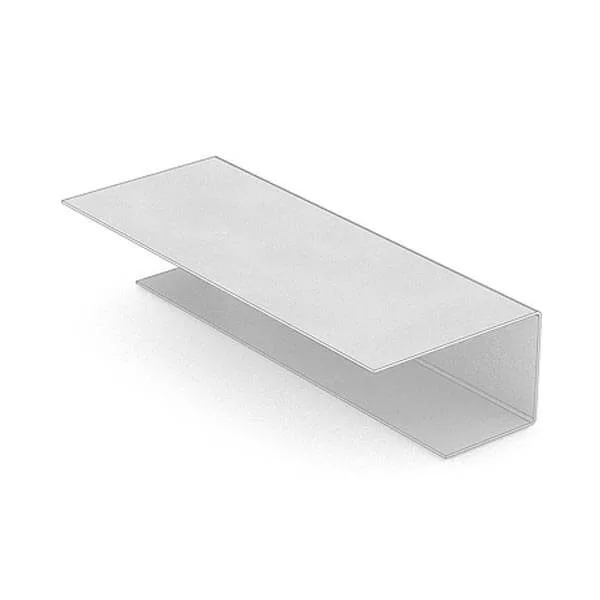

The Gyproc PlaGyp PU27/48 is a U-shaped metal perimeter channel for the substructure of suspended ceilings, used with PlaGyp ceiling profiles. Ceiling profiles slide into the edge channel; plasterboards are screwed to this frame.

Lightweight and easy to cut to length with tin snips. Hot-dip galvanised steel, rust-resistant. Suitable for PlaGyp S (drop up to 20 cm, single grid) and PlaGyp D (larger drop, double grid).

For a ceiling independent of the existing structure, use Gyproc Metal Stud profiles instead of PlaGyp.

• Brand: Gyproc
• Range: PlaGyp
• Type: PU27/48 perimeter channel (U-profile)
• Material: hot-dip galvanised steel Z100 (NBN EN 10346)
• Gauge: 0.6 mm
• Dimensions: flanges 27 mm and 48 mm, base 28.2 mm
• Length: 4 m (4000 mm)
• Base perforations: Ø 6.5 mm, 750 mm centres
• Standard: NBN EN 14195
• Use: PlaGyp S and D ceilings, including C60/27
• EAN: 5413218001984
